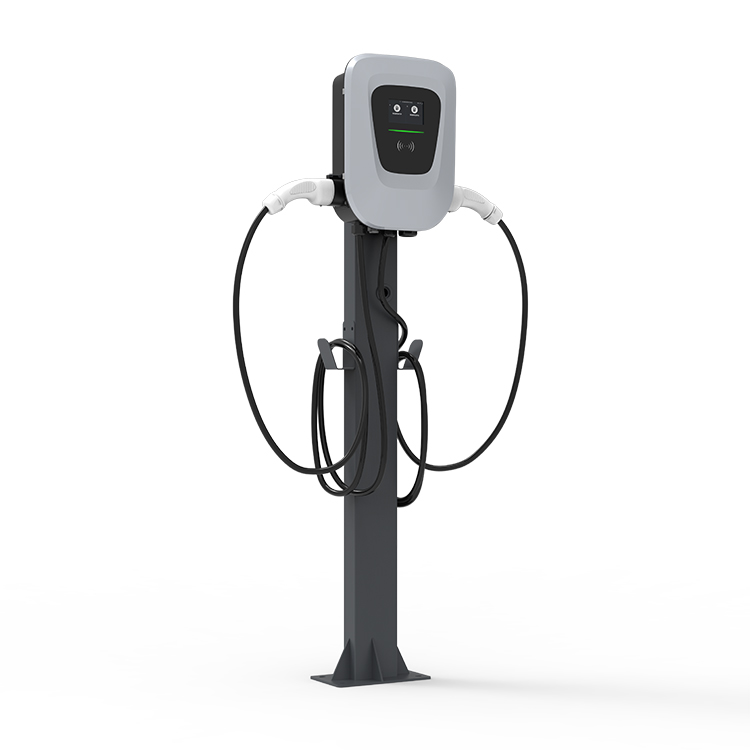

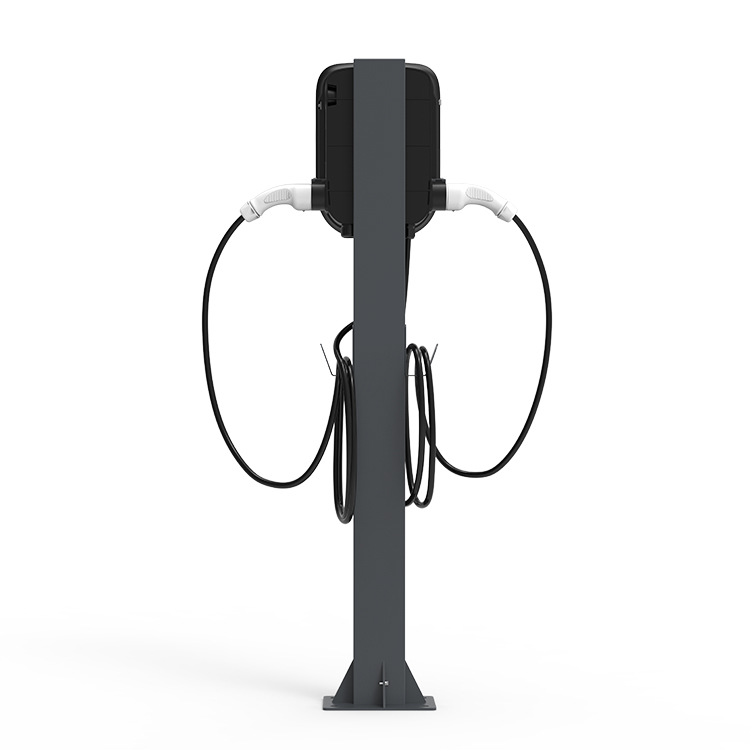

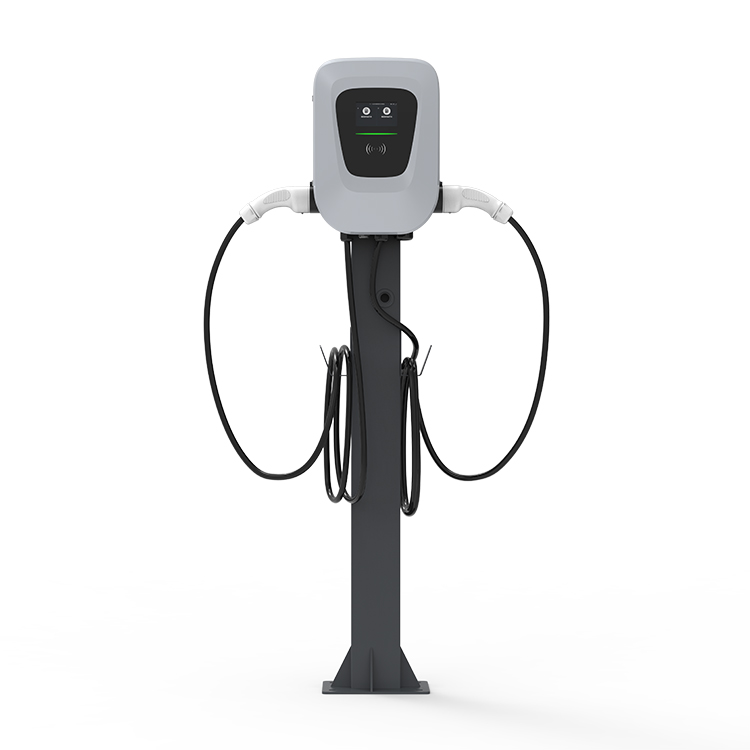

Type 2 Plug EV Charger – 7KW/11KW/22KW AC Home Charging Station for Electric Vehicles

Maximize your EV charging with our 22KW Type 2 AC Home Charger. TUV-certified for safety, this charger offers a full charge in under 3 hours and suits both home and commercial use. It features a precise MID meter, a clear 4.3-inch LCD, and flexible mounting options. Enjoy rapid, reliable charging with IP55-rated protection and advanced safety features. Ideal for personal garages to commercial fleets, it's the smart choice for the modern EV owner.

Charging Plug

Customization Options

Charging Plug

Optional plug to meed country standardsGuns or 2 Guns (CCS1,CCS2,Chademo,GBT,AC Optional)

Logo

Customized Logo put on shell by laseron lCCB box or cable head

Exterio & Cable Length

Customized shapes or colors and cable lenath tomatch any architectural style and your needs.

Additional Feature

7Kw-480Kw charging power option/ Chargingpayment system/Energy and money saving evcharging solutions/Floor stand or wall mounted,.etc
Request a Quote Download Catalogue

Share:

Product Description

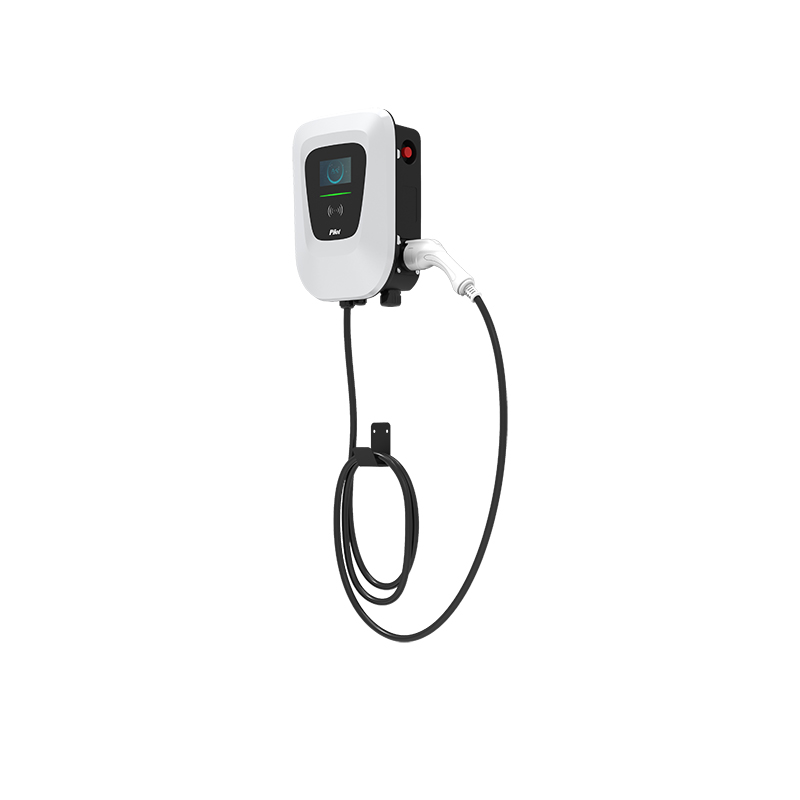

Compact and Certified 22KW Type 2 AC EV Charger

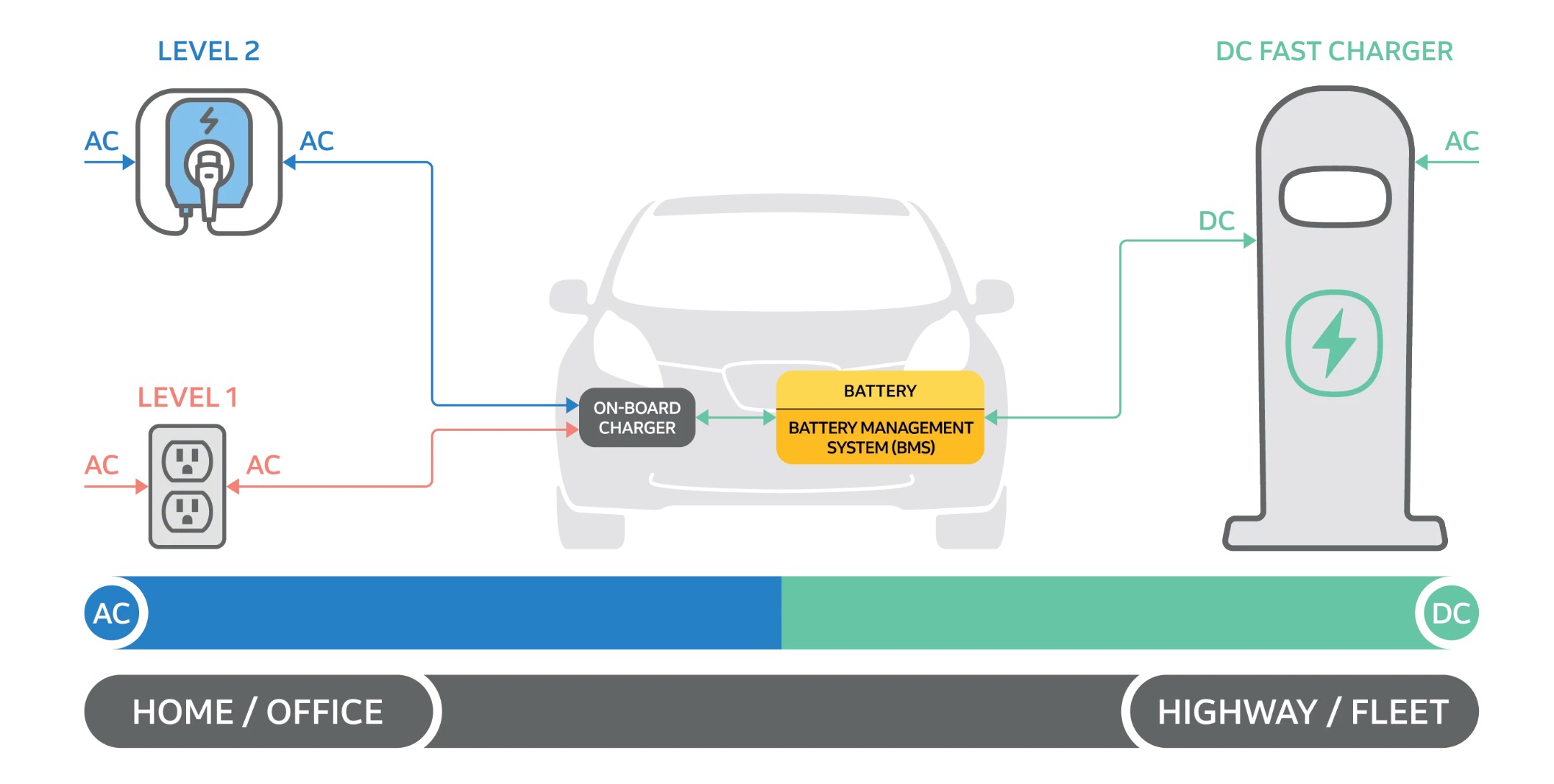

Elevate your EV charging experience with our versatile 22KW AC Home Charger, certified by TUV for reliability and performance. This sleek, space-saving solution is perfect for both residential and commercial applications, boasting a rapid charging capability that delivers a full charge in under 3 hours for an eco-friendly journey of up to 100 miles.

Experience precision with our integrated MID meter, and enjoy the convenience of multiple charging options (7KW, 11KW, 22KW) through a Type 2 connector compliant with IEC 62196-2 standards. Designed for discerning users, our charger features a 4.3-inch clear LCD display, optional RFID/App user identification, and adherence to the latest OCPP 1.6 JSON protocol.

With IP55 protection for indoor/outdoor use and robust safety features like RCD Type A and DC 6mA leakage protection, our charger ensures durability and safety. Offering both wall-mount and pole-mount installation options, the unit seamlessly integrates into any environment, ensuring that your electric vehicle is always powered and ready to go.

Key Applications:

Highway gas/service stations
Parking garages
Commercial fleets
EV dealerships
EV infrastructure
Invest in a future-proof charging station that blends performance, safety, and style.

Product Specifications

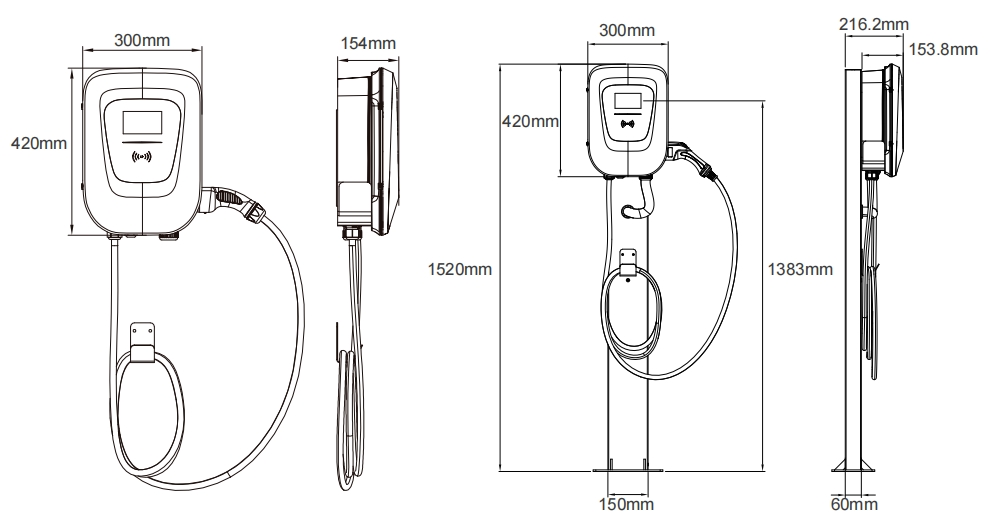

Space-efficient 22KW Type 2 AC EV Charger with dimensions 420x300mm, side profile 154x1520mm, and cable length 1383mm, featuring a user-friendly 4.3-inch display.

Power Specifications
Input connection 3-Phase :3P+N+PE( Single-Phase Optional: 1P+N+PE)
Input Voltage 400Vac+10%(230Vac+10% 0ptional)
Input Current 16A or 32A
Frequency 50Hz or 60Hz
Output Voltage 400Vac+10%(230Vac+10% Optional)
Output Current 16A or 32A
Rated Power 11kW-22kW(3.7kW-7.4kw Optional)



User Interface & control
LCD Display 4.3″ Color Touch Screen( Optional )
User Authentication RFID(ISO/IEC 14443)/APP
LED Indicator Green/Blue/Red
Charger Connector IEC 62196-2 Type 2 (SAEJ1772 Type 1 0ptional)
Energy Measuring MID Meter



Communication
Backend Bluetooth / Wi-Fi/ Ethernet (4G Optional )
Backend Protocol OCPP 1.6J(0CPP2.x Coming soon)



Protection
Residual Current Protection Type A 30mA+DC 6mA
Electrical Protection Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection



Environmental
Operating Temperature -30℃-+50℃
Storage Temperature -40℃-+85℃
Operating Humidity Max. 93% RH, Non-Condensing
Operating Altitude ≤2000m
IP,lK Level IP55,IK08
Cooling Method Natural Cooling



Mechanical
Product Dimension 300mm*154mm*420mm( W*D*H )
Package Dimension 395mm*285mm*500mm( W*D*H )
Weight 5.9kg( Net )/7.7kg( Gross )
Charging Cable Length 5m(Customizable)
Mounting Wall-mount and Stand-mount



Certifications
Certificate EN 61851-1 2019,IEC 62955 2018,IEC 61008-1 2010,IEC/EN 62196-1
Safety TUV, CE

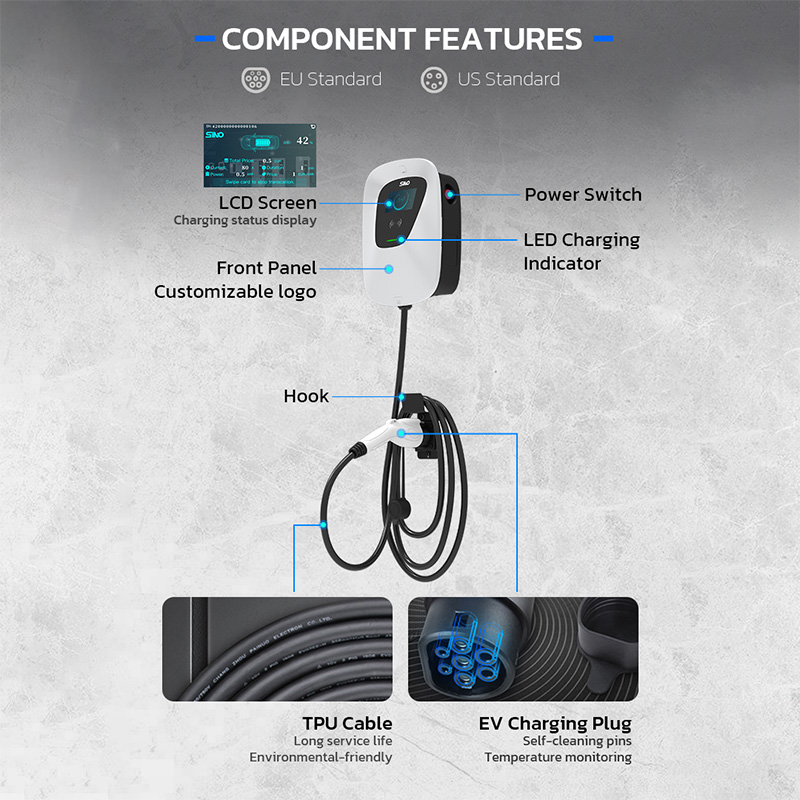

Product Features

Rapid Charging

Experience the pinnacle of efficiency with our AC EV Charger, designed to rapidly power your electric vehicle. With options for 7KW, 11KW, and 22KW charging, this versatile device can fully charge your car in under three hours, ensuring that you’re ready to cover up to 100 miles on a single charge.

Sleek Design and Display

The AC EV Charger boasts a modern, ergonomic build with a compact footprint of 420x300mm. A well-defined 4.3-inch LCD display provides clear information at a glance, merging functionality with a touch of sophistication for your charging station.

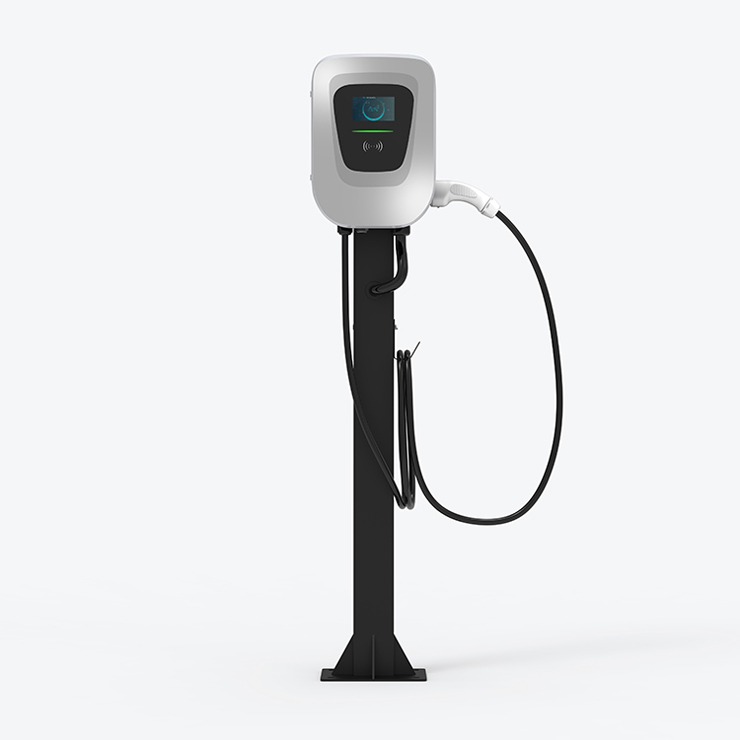

Installation Flexibility

Customize your charging setup with the choice of wall-mount or pole-mount options. Our charger’s adaptable design accommodates various installation spaces, offering ease and convenience for both indoor and outdoor applications.

Safety Assurance

Prioritize safety with our charger's built-in RCD Type A and 6mA DC leakage protection. Certified with TUV and featuring an IP55 rating, this charger is not just a powerhouse but also a guardian, ensuring each charging session is secure and reliable.
