Optical Storage Devices all-in-one 209KW/261KWH Outdoor Liquid Cooled Rack

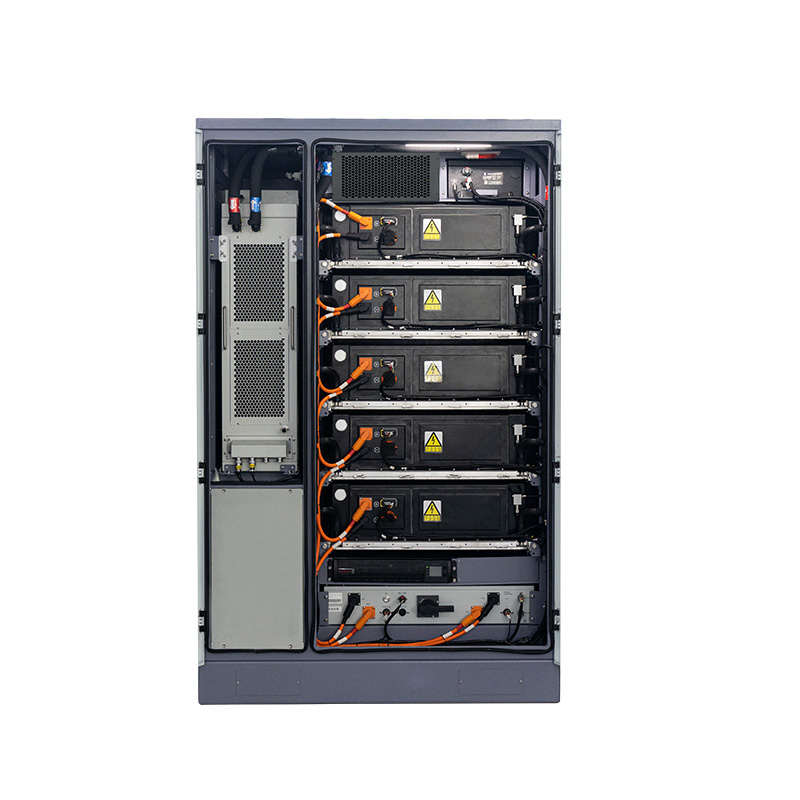

Pilot Integrated ESS is highly combined with LFP battery system, BMS, PCS, EMS, liquid cooling system, fire protection system, power distribution and other equipment inside the cabinet. Provide economic, safe, intelligent, and convenient electricity solutions for industrial and commercial users. Standard Design Modular "All-In-One" integrated single cabinet design High Safety Multi-level fire protection system,graded isolation interlocking protection and a circular air duct design Easy to Install Supports multi-level parallel connection , bottom busbar design , maximizing land space utilization

Power Optional

Customization Options

Power Optional

100kw/209kwh, 125kw/241kwh, 125kw/261kwh Pilot has specially developed 3 models based on market demand for customers to choose from. If your project requires customization, please contact us immediately.

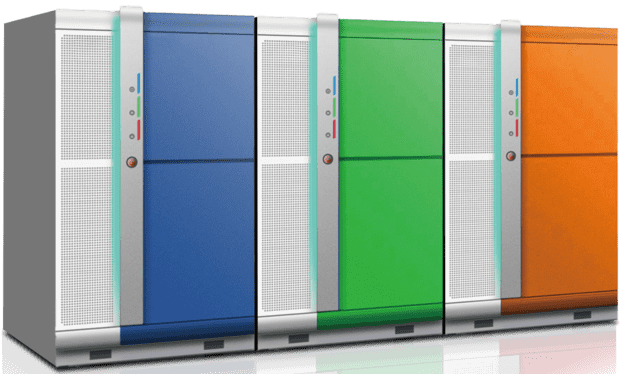

Logo

Print custom logos on energy storage cabinet housings via laser marking
Request a Quote Download Catalogue

Share:

Product Description

Highlights
+ Plug & Play, All-in-One, ACcoupled solution 261 kWh battery with advanced thermal management
+ LFP cells from top class supplier, assurance of long life and maximum safety
+ Active equalization technology adopted in BMS, for maximum safety and longevity
+ AI equipped, energy management system (EMS) with remote monitoring & maintenance service
+ Economic & Efficient, achieving an impressive 90% energy conversion efficiency
+ Fully independent Active Fire Suppression system
+ Outdoor IP54 enclosure for any location Installation and relocation friendly, designed for forklift handling
+ Standardised and expandable battery storage system up to 10 units

Specification

Product model

PL-ESS-100/232-0.4-L

DC-side parameters

Battery cell type

LFP energy storage dedicated battery cell

Grouping method

1P*52S*5S

Nominal energy

232kWh

Working voltage

741V~949V

Rated charge/discharge rate

0.5P

Certificates

GB/T,UL,IEC,MSDS,UN38.3

AC-side parameters

AC rated power

100kW

AC maximum power

110kW

Rated power grid voltage

380V

Rated power grid frequency

50Hz

System parameters

System efficiency

≥91%

Depth of discharge

95%DoD

Number of cycles

≥8000

IP rating

IP55(PACKIP67)

Operating temperature

Liquid cooling

Cooling mode

Perfluorohexanone PACK-level fire protection + active early warning

Fire protection system

-20℃~+50℃

Dimensions

1300*1380*2100(mm)

Weight

≤2.8 t

All-in-One BESS (Air Cooling)

Type

Energy (kWh)

Power (kW)

DC Voltage

Cell

(Ah)

Grouping

Num. of Packs

Grid Voltage

 Applications
1

1000V System

100

50

358.4

280

1P16S

7

400

 Peak Shaving and Valley Filling, Load Shifting, Dynamic Capacity Expansion, Backup Power Supply

All-in-One BESS (Liquid Cooling)

Type

Energy (kWh)

Power (kW)

DC Voltage

Cell

(Ah)

Grouping

Num. of Packs

Grid Voltage

 Applications
1

1000V System

215

100

768

280

1P48S

5

400

 Peak Shaving and Valley Filling, Load Shifting, Dynamic Capacity Expansion, Backup Power Supply
2

1000V System

232

100

832

280

1P52S

5

400
3

1000V System

261

125

832

314

1P52S

5

400
4

1500V System

417.9

215

1331.2

314

1P52S

8

690

Product Specifications

Parameters/Model PL-EL-100/209 PL-EL-125/261
Battery parameters
Cell and Capacity LiFePO4 ,-314Ah
Battery m odule 1P52S*4S 1P52S*5S
Battery system capacity 209kWh 261kWh
AC side grid-con necte d parameters
Grid type 3P4W
Rated power 100kW 125kW
Rated voltage AC 400V
Grid voltage fluctuations ±15%
Frequenc y range 50 /60 （+/-2.5Hz）
Rated current 160A 180A
Harmonics ≤3%(@rated power)
AC side Off-grid parameters
Load connection 3P4W
Rated output power 100kW
Frequency range 50 /60 （+/-2.5Hz）
Rated vo ltage AC 400V
General parameters
Dimensions (W*H*D) 1100mm*2350mm*1400mm
Weight 2.33t 2.65t
IP protection level IP54 （Battery PACK IP65）
Cooling method Liquid cooling
Fire protection system Aerosol + Perfluorohexan one PACK fire protection + Active early fire warning
Anti-corrosion level C3
Relative humidity 0-95%（No cond ensation）
Operating temperature* -20℃~50℃
Working altitude** ≤2000m
Noise ≤75dB
Communication interface RS485, Ethernet
Communication protocol Modbus RTU, Modbus TCP/IP
arranty period 5 years for battery, 2 years for performance

Product Features

High Energy Conversion Efficiency

Achieving an impressive 92% energy conversion efficiency, our system ensures maximum energy retention with a thermal rise less than 3°C, significantly enhancing the operational life cycle and cost-effectiveness.

Superior Protection and Durability

With an advanced protection rating of IP55 and robust PACK IP67 casing, our system is safeguarded against dust and water ingress, ensuring reliable performance even in harsh conditions.

Operational Cost Reduction

By optimizing operational processes, our system offers a substantial cost reduction in energy expenses by 10%, delivering both high efficiency and economic benefits.

Capital Expenditure Savings

Our innovative design and technology contribute to a 2% reduction in initial capital expenditure, promoting sustainable investment and long-term savings.
