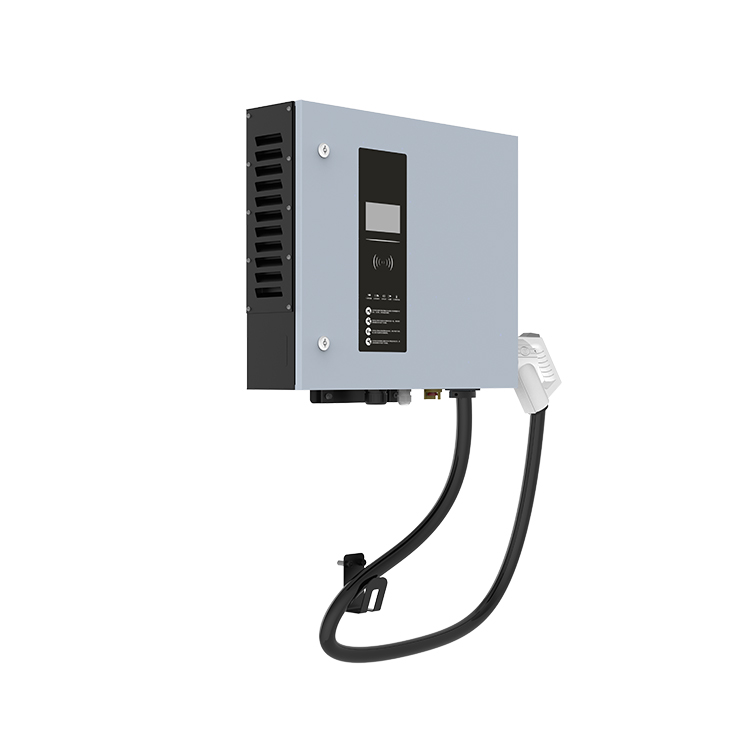

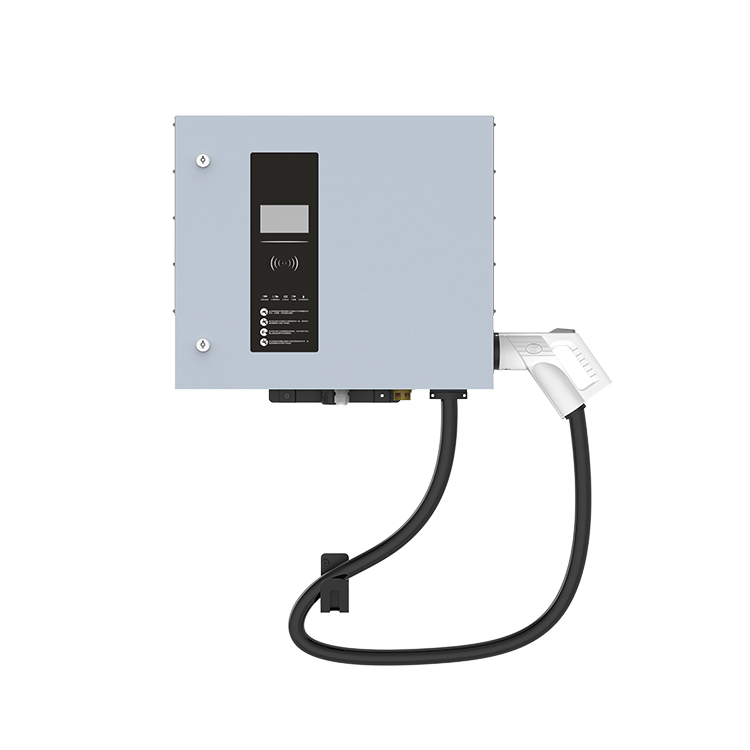

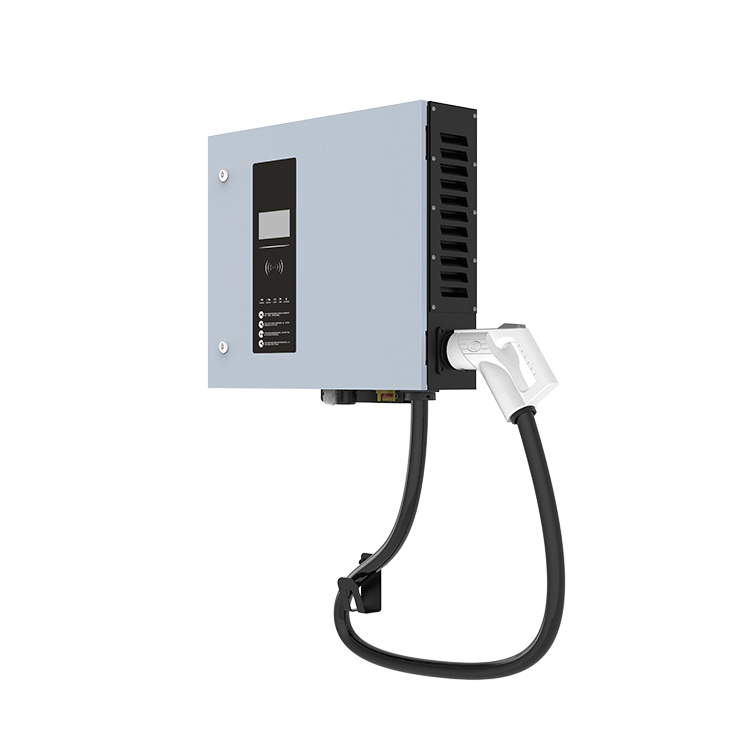

30-45Kw DC Electric Car Charging Station

Searching for a top-tier 30KW DC charging solution? Our 30KW Electric Vehicle Charging Station is the perfect blend of quality and cost-efficiency. Equipped with WiFi and Ethernet for remote control and designed for universal compatibility, it automates the charging process across all vehicle types. Plus, with an extended power communication cable, setup and use are incredibly user-friendly.

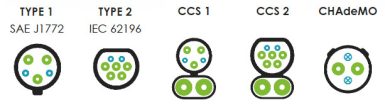

Charging Plug

Customization Options

Charging Plug

Optional plug to meed country standardsGuns or 2 Guns (CCS1,CCS2,Chademo,GBT,AC Optional)

Logo

Customized Logo put on shell by laseron lCCB box or cable head

Exterio & Cable Length

Customized shapes or colors and cable lenath tomatch any architectural style and your needs.

Additional Feature

7Kw-480Kw charging power option/ Chargingpayment system/Energy and money saving evcharging solutions/Floor stand or wall mounted,.etc
Request a Quote Download Catalogue

Share:

Product Description

Step into the future of electric vehicle charging with our 30 kW DC EV Charging Station, tailored for the eco-conscious driver. Embracing multi-standard compatibility with CCS1, CCS2, and CHAdeMO, our chargers are designed for both networked and standalone operations. With an option for RFID or app-based user identification and management, charging becomes a personalized experience.

Our smart charging system intelligently balances the load to deliver over 95% efficiency with a power factor of ≥ 0.98, all while offering a variety of protective features to ensure the safety of users. Interaction is made effortless with a 4.3-inch color touchscreen interface, providing a user-friendly experience.

Adhering to the latest OCPP 1.6 JSON standards and boasting an IK10 & IP54 rating, this robust station can be customized to suit any application, whether it’s for a highway service station, a parking garage, or a commercial fleet operator. With optional wall-mount and stand-mount features, it saves space while offering flexible installation options for both indoor and outdoor environments.

Our 30 kW DC EV Charging Station not only fuels your vehicle but also offers a reliable power solution, even in outages, doubling as a power source for other devices in your home. Plug in, charge up, and drive off into a greener horizon with PIWIN’s reliable charging technology.

Product Specifications

Power Specifications
Input Connection 3-Phase :3P+N+PE
Input Voltage 400Vac+10%
Frequency 50Hz or 60Hz
THDi ≤5%
Power Factor ≥0.98
Output Voltage 150Vdc-1000Vdc
Max. Output Current 100A( 125A CHAdeMO )
Rated Power 30kW



User interface & contrcol
LCD Display 4.3″ Color Touch Screen
User Authentication RFID(ISO/EC 14443)(APP/ Credit Card Customization )
LED Indicator Green/Blue/Red
Charger Connector CCS2(CCS1 /CHAdeMo Optional
Energy Measuring DC meter, with 1% accuracy



Communication
Backend Ethemet / Bluetooth / Wi-Fi ( 4G Optional )
Charging Protocol ISO 15118 , DIN 70121
Backend Protocol OCPP 1.6 J(OCPP2.x Coming soon)



Protection
Residual Current Device Yes
Internal Fuse Yes
Electrical Protection Over/Under Voltage Protection,Over Current Protection, Short Circuit Protection, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection



Environmental
Operating Temperature -30℃-+50℃
Storage Temperature -40℃-+75℃
Operating Humidity Max.93%RH,Non-Condensing
Operating Altitude ≤ 2000m
IP, lK Level IP54,IK10
Cooling Method Fan Cooling



Mechanical

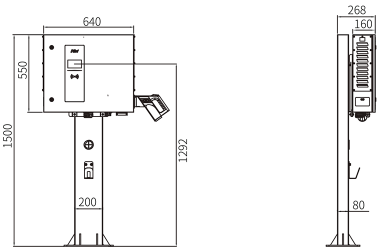

Product Dimension 640mm*160mm*550mm( W*D*H)
Package Dimension 808mm*438mm*748mm( W*D*H)
Charging Cable Length 5m( Customizable )
Weight 80kg( Net )/ 85.7kg( Gross )

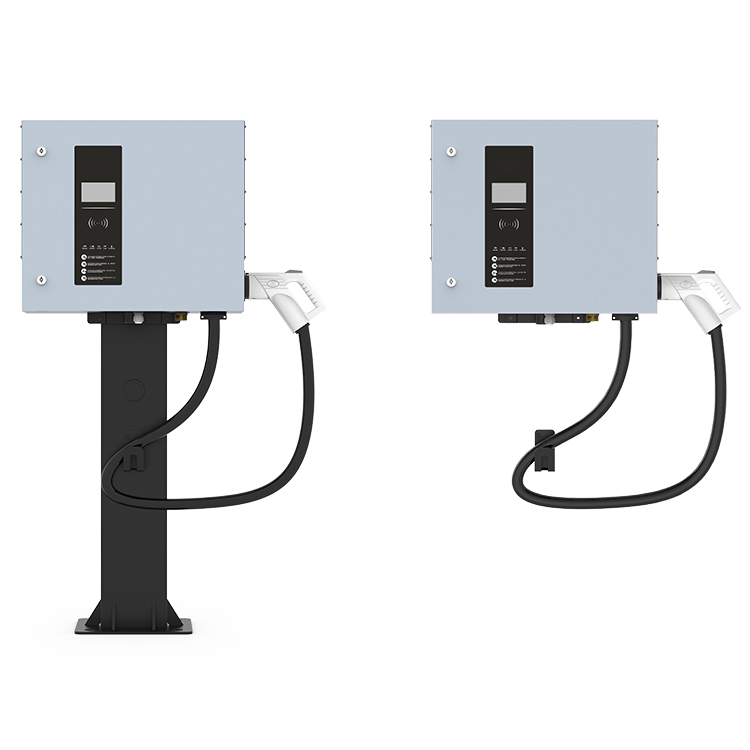

Mounting Wall-mount and Stand-mount



Certifications
Certificate IEC62196-1,IEC62196-3,IEC 61851-1,IEC61851-23,IEC61851-24
Safety CE

Product Features

Universal Compatibility

Our DC EV Charging Station supports all major standards—CCS1, CCS2, CHAdeMO—ensuring a fit for a range of electric vehicles.

Intelligent Operation

Designed for both networked and standalone use, with smart features like RFID/App for user management and support for smart charging and load balancing.

Safety and Efficiency

With an efficiency over 95% and power factor above 0.98, the station also offers multiple layers of protection for user safety.

Flexible Installation

Available with customizable options and suitable for various applications, our station includes optional wall or stand mounts for space-saving installation indoors or outdoors.

Established Trust and Proven Reliability in Charging Technology

Extensive Experience in Major Projects

Our track record speaks for itself. With years of expertise in implementing large-scale projects across the globe, we bring a wealth of practical knowledge and proven solutions to your doorstep. Our seasoned professionals are equipped to handle the complexities of any size project, delivering excellence every time.

Innovation and Technological Prowess

At the heart of our operation lies a commitment to technological innovation. We pride ourselves on our in-house research and development, producing cutting-edge charging technologies that lead the market. Our solutions are born from a fusion of advanced science and practical application, ensuring you benefit from the latest advancements in EV charging.

Manufacturing Capacity and Excellence

Our state-of-the-art manufacturing facilities are the backbone of our promise to you. Boasting impressive production capabilities, we ensure a seamless transition from design to delivery. Our plants operate with precision and efficiency, allowing us to meet demands swiftly and scale operations as needed, without compromising on quality.

Global Presence and Local Support

With a network of overseas branches, as evidenced by our locations from Turkey to Southeast Asia, we’re more than just a global brand – we're a local partner. Our international footprint enables us to provide you with local support and services, ensuring that wherever you are, a Pilot X Piwin office isn't far away. We're local everywhere, bringing global expertise to your local community.

Tested and proven in the harshest of conditions.

Weather scenes
Customizable Branding

Scorching heat

Rainy Day

Snowy day

Start from 1

We have an MOQ policy of only one unit, allowing you to test the market with minimum inventory pressure.

In-House Manufacturing

Our EV chargers made from our factory go through a strict QC process for performance and safety.

Wholesale Discounts

We offer deep discounts on bulk orders, helping you increase your ROI.

Timely Response

All of your inquiries and concerns are answered within 24 hours.

Innovative Products

Our series of patents show how we follow technological trends to give you an advantage.

30 Years of Expertise

With 30 years of working in the electrical industry, our team can create innovative EV chargers.

Click for case support

Start from 1

We have an MOQ policy of only one unit, allowing you to test the market with minimum inventory pressure.

In-House Manufacturing

Our EV chargers made from our factory go through a strict QC process for performance and safety.

Wholesale Discounts

We offer deep discounts on bulk orders, helping you increase your ROI.

Timely Response

All of your inquiries and concerns are answered within 24 hours.

Innovative Products

Our series of patents show how we follow technological trends to give you an advantage.

30 Years of Expertise

With 30 years of working in the electrical industry, our team can create innovative EV chargers.

Click for case support

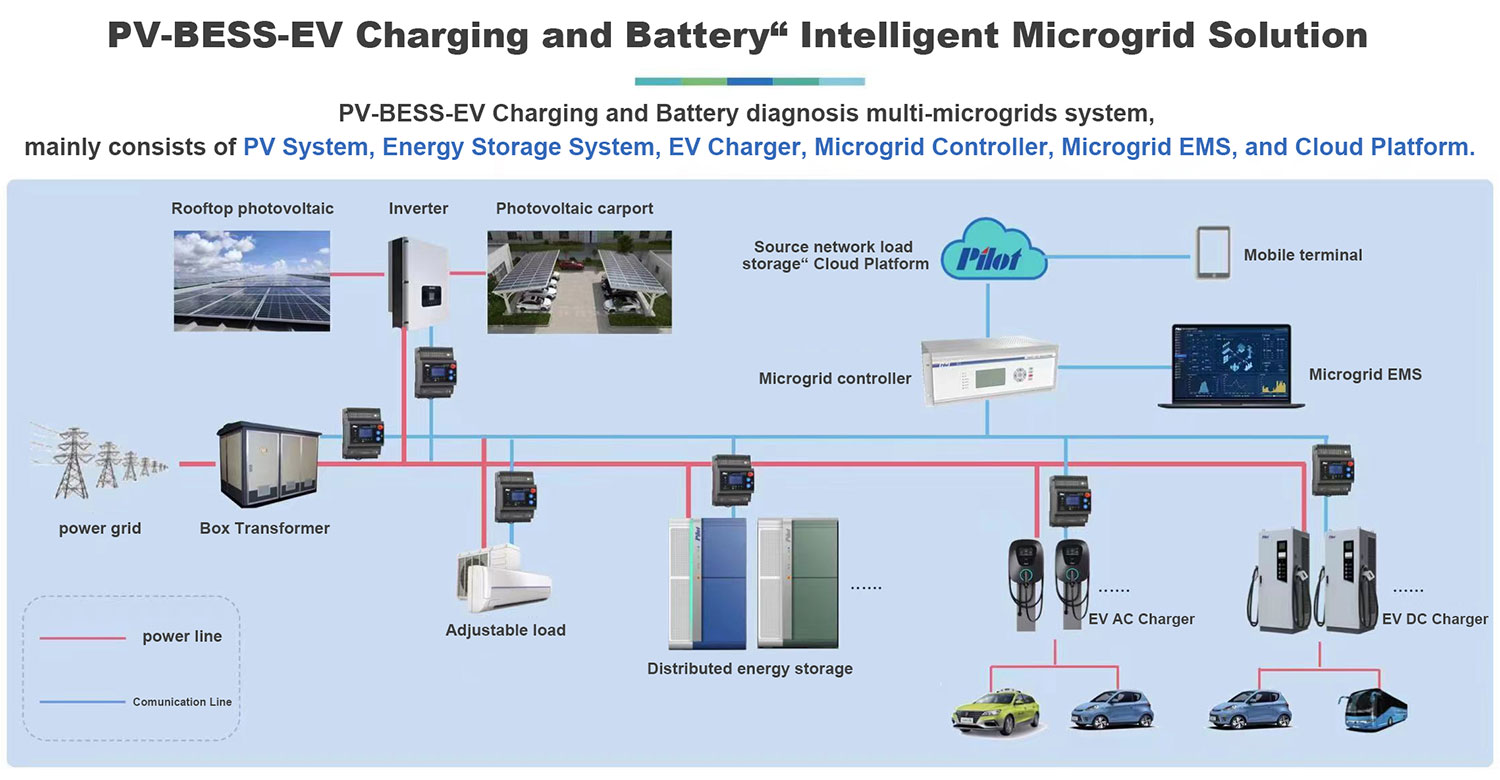

Low-Carbon Intelligent Park One-Stop Solution

Our Projects

Empowering Progress: Innovative Applications of Our Battery Energy Storage Systems Across Various Industries
Pilot x Piwin DC EV Charging Station in a Canadian parking garage, designated for electric vehicles only.

DC EV Charging Station

Country Canada
In the heart of Canada's bustling urban environments, PILOT & PIWIN's state-of-the-art DC EV Charging Stations are a testament to our innovative spirit. Seamlessly integrated into underground parking structures, our chargers offer robust, rapid, and reliable service. Each station boasts an impressive up to 160kW output, ensuring efficient power delivery with overvoltage and surge protection. Catering to the high demands of modern electric vehicles, we emphasize safety and efficiency with over 95% operational efficiency and multi-standard support including CCS1, CCS2, and CHAdeMO. PILOT & PIWIN are powering the drive towards a sustainable future, one charge at a time.

DC EV Charging Station

Country Japan
The Pilot X PIWIN DC EV Charging Station is revolutionizing power delivery for large vehicles in Japan. With a formidable output range of 60kW to 160kW and advanced CE-certified safety mechanisms, our chargers handle the rigors of heavy usage while prioritizing vehicle and user protection. Equipped with a comprehensive suite of safeguards including over/under voltage, current, short circuit, and surge protection, every charge is efficient and secure. Our intuitive 7" color touch screen ensures seamless user interactions, enhancing the charging experience at every turn.
AC EV Chargers by Pilot x Piwin in an Italian underground parking garage, providing electric vehicle charging solutions.

DC Fast Charging Pile

Country Italy
In the heart of Italy’s bustling streets, an underground sanctuary of power breathes life into electric vehicles. Embrace the efficiency of Pilot x Piwin’s DC Fast Charging Pile, where robust design meets revolutionary technology. Our chargers, equipped with overcurrent and lightning protection, stand guard in Italian garages, offering safe harbor and swift charging to the eco-conscious driver.

AC EV Charger

Country United Arab Emirates
In a bustling company parking lot in the United States, Pilot x Piwin's AC EV Charger stands at the forefront of convenience and technological innovation. Designed for both commercial and residential use, this charger epitomizes flexibility and cost-efficiency. Equipped with an array of protective features such as over-voltage and short circuit safeguards, this model caters to the safety-conscious, environmentally aware business. With its user-friendly interface and robust design, it's an ideal solution for busy workplaces looking to offer employees and visitors a reliable charging option.

DC EV Charging Station

Country Romania
In Malaysia's tranquil suburbs, Pilot x Piwin's DC EV Charging Station stands as a beacon of rapid and reliable charging. Catering to eco-friendly drivers on the outskirts, this station offers a swift power-up, marrying innovation with the serenity of suburban life.

DC EV Charging Station

Country Norway
In the bustling outdoor parking lot of a Korean office building, the Pilot x Piwin DC EV Charging Station offers a seamless integration of efficiency and accessibility. Designed to support the energy demands of a fast-paced urban environment, this station provides a swift recharge for electric vehicles, ensuring that professionals are powered for their next journey.

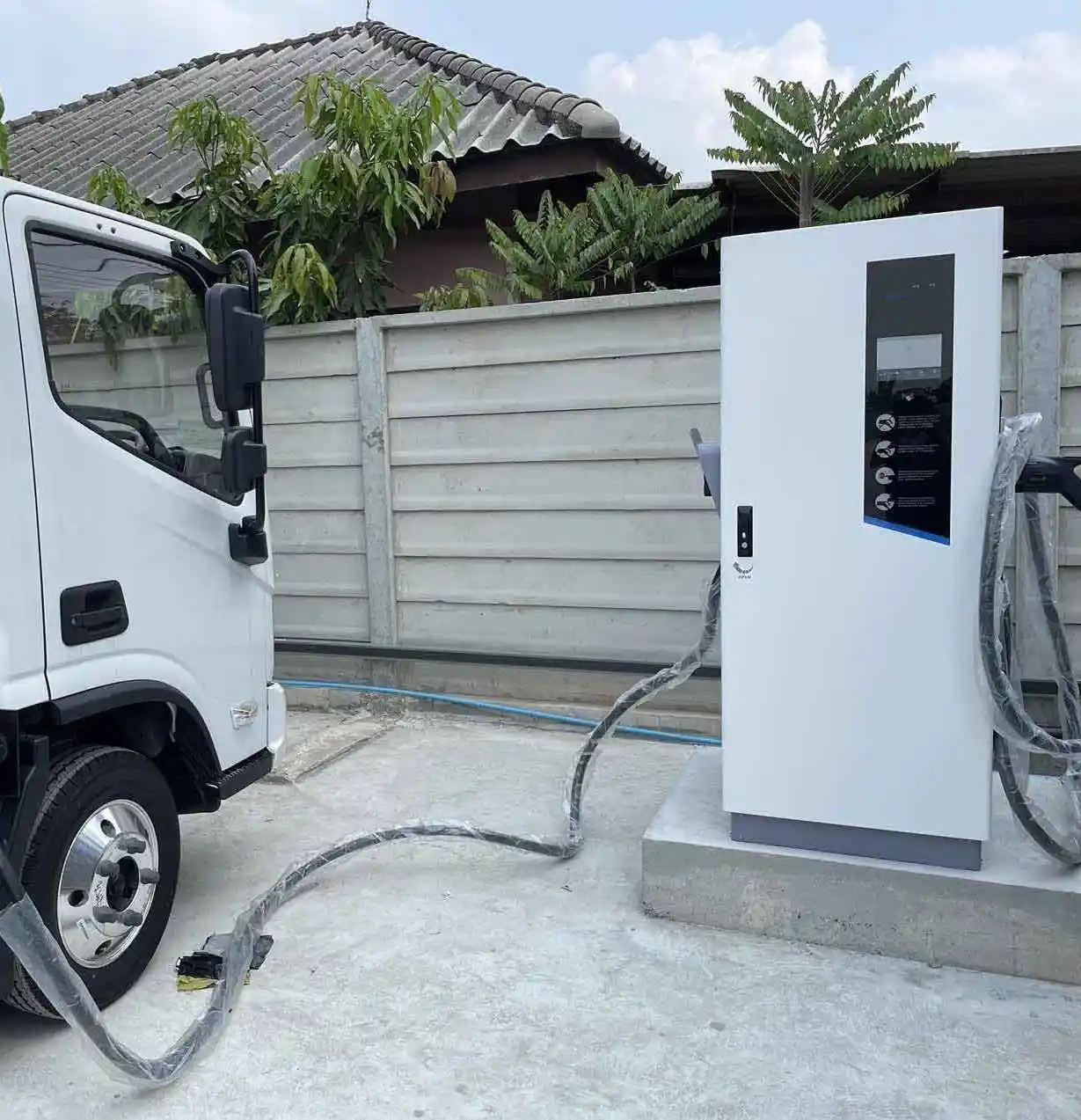

DC EV Charging Station
